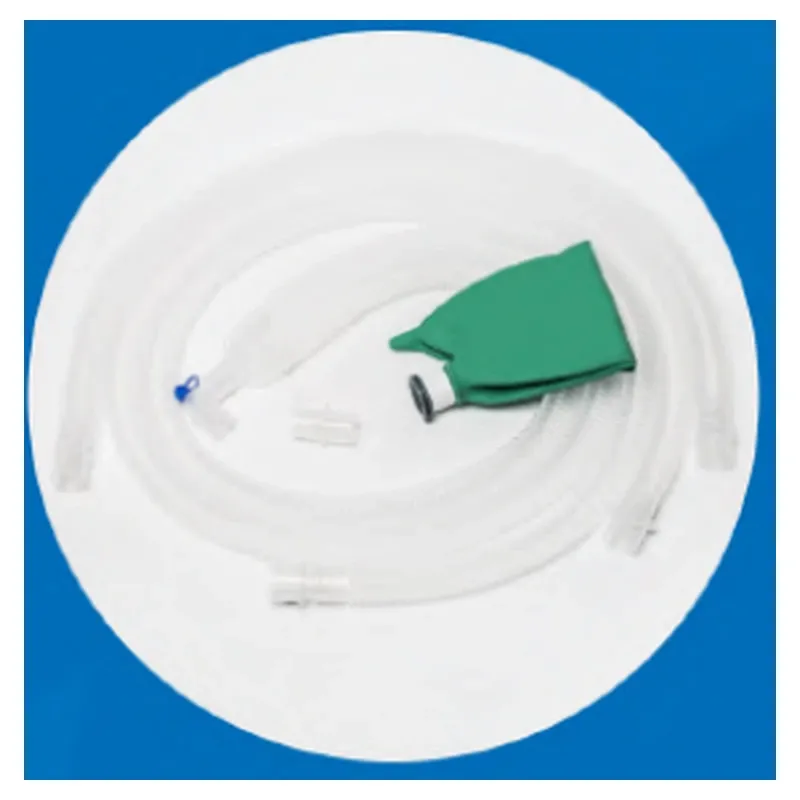

Anesthesia Circuits - Corrugated
Corrugated anesthesia circuits in adult (22 mm ID), pediatric (15 mm ID) and neonatal (10 mm ID) versions, with 18 catalogue configurations.
Anesthesia Circuits - Corrugated
Corrugated anesthesia circuits in adult (22 mm ID), pediatric (15 mm ID) and neonatal (10 mm ID) versions, with 18 catalogue configurations.
Features and options
- A: 2 tubes, 2 straight connectors, 1 Y-connector, 1 elbow connector and 1 Luer cap.
- C: breathing bag (0.5/1/2/3 L); D: connector; E: anesthesia mask; F: CO2 sampling line; G: breathing filter (HMEF).
- B: optional extra limb, 0.5-1 m.
- Breathing bag: latex-free or latex options. Anesthesia mask: PVC, latex-free.
- Sampling ports are shown on the filter and elbow connector.
Model configurations
| REF No. | Size | Tube ID | Table length | Configuration |
|---|---|---|---|---|
| 06.067 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.064 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.281 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.065 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.282 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.100 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.055 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.066 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.266 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.067 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.267 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.101 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.832 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.068 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.256 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.069 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.257 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.102 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
