Anesthesia Circuits - Expandable
Expandable anesthesia circuits in adult (22 mm ID), pediatric (15 mm ID) and neonatal (10 mm ID) versions, with 18 catalogue configurations.
Anesthesia Circuits - Expandable
Expandable anesthesia circuits in adult (22 mm ID), pediatric (15 mm ID) and neonatal (10 mm ID) versions, with 18 catalogue configurations.

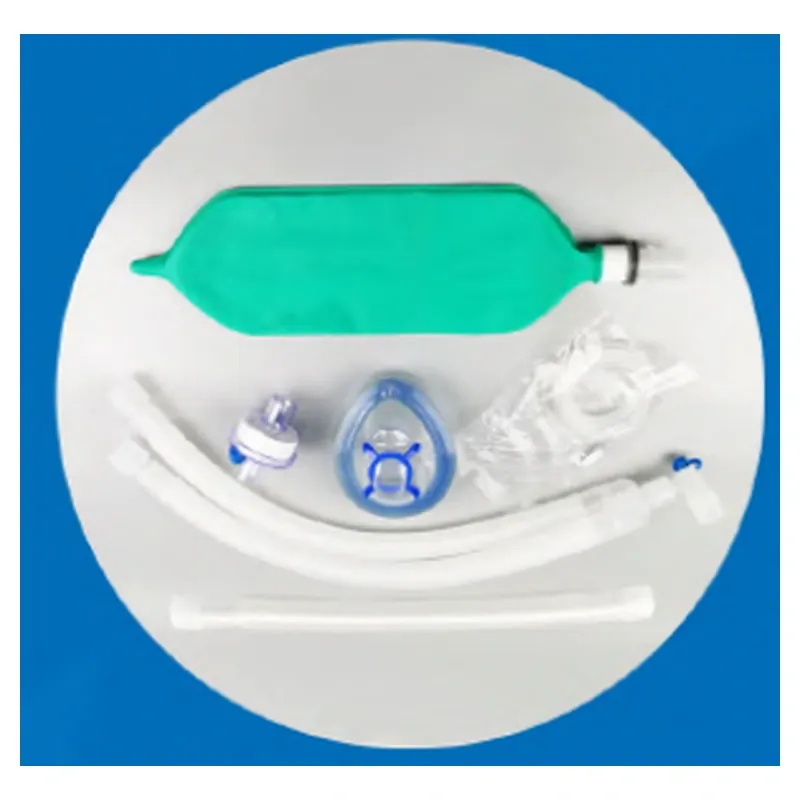

Features and options
- A: 2 tubes, 2 straight connectors, 1 Y-connector, 1 elbow connector and 1 Luer cap.
- C: breathing bag (0.5/1/2/3 L); D: connector; E: anesthesia mask; F: CO2 sampling line; G: breathing filter (HMEF).
- B: optional extra limb, 0.5-1 m.
- Breathing bag: latex-free or latex options. Anesthesia mask: PVC, latex-free.
- Sampling ports are shown on the filter and elbow connector.
Model configurations
| REF No. | Size | Tube ID | Table length | Configuration |
|---|---|---|---|---|
| 06.139 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.076 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.081 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.077 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.082 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.106 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.121 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.078 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.066 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.079 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.065 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.107 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.833 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.080 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.052 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.081 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.053 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.108 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
