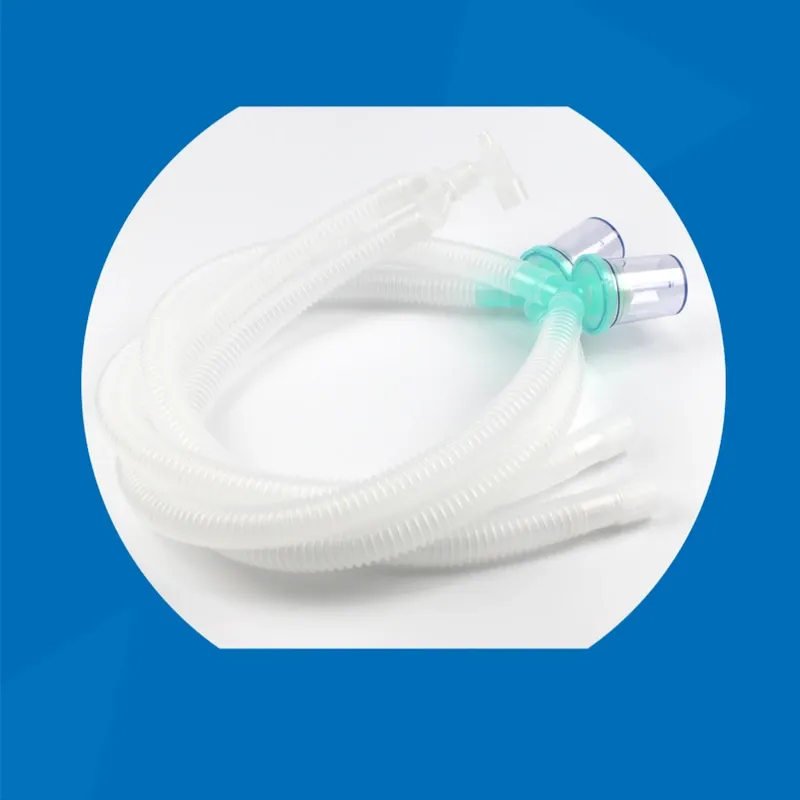

Ventilator Circuits - Corrugated
Corrugated ventilator circuits in adult, pediatric and neonatal sizes, with customizable lengths and configurations including breathing bags, filters and anesthesia masks.
Corrugated breathing circuits for use with ventilators. Available in adult, pediatric and neonatal sizes with 15 reference-number configurations.
Product Features
- Tube type: corrugated.
- Tube internal diameter: adult 22 mm, pediatric 15 mm and neonatal 10 mm.
- Tube length options: 0.5-3 m, with custom lengths available. The illustrated circuit set A is specified at 1.2-3 m.
- Circuit set A includes 4 tubes, 2 straight connectors, 1 Y-connector, 1 elbow connector with Luer cap and 2 water traps.
- Optional extra limb B: 0.5-1 m.
- Breathing bag options: 0.5 L, 1 L, 2 L and 3 L; latex-free or latex alternatives.
- Optional anesthesia mask: PVC, latex-free.
- Optional breathing filter: BVF/HMEF with sampling port. An elbow connector with sampling port is also available.
- Other optional components include connectors, sampling lines, catheter mounts and airway cannulas.
Connector Options
Elbow connector: 15 mm M to 15 mm F/22 mm M; straight connector: 22 mm F; Y-connector: 15 mm F/22 mm M to 22 mm F. Confirm connector sizes for the selected reference number when ordering.
Available Models
All reference numbers below list 0.5-3 m tube lengths, with custom lengths available. Accessories are included according to the selected configuration.
Adult - tube ID 22 mm
| Reference No. | Configuration |
|---|---|
| 98.06.319 | 1 circuit set |
| 98.06.322 | 1 circuit set + breathing bag |
| 98.06.323 | 1 circuit set + breathing filter |
| 98.06.324 | 1 circuit set + breathing bag + breathing filter |
| 98.06.325 | 1 circuit set + breathing bag + anesthesia mask + breathing filter |
Pediatric - tube ID 15 mm
| Reference No. | Configuration |
|---|---|
| 98.06.311 | 1 circuit set |
| 98.06.314 | 1 circuit set + breathing bag |
| 98.06.315 | 1 circuit set + breathing filter |
| 98.06.316 | 1 circuit set + breathing bag + breathing filter |
| 98.06.317 | 1 circuit set + breathing bag + anesthesia mask + breathing filter |
Neonatal - tube ID 10 mm
| Reference No. | Configuration |
|---|---|
| 98.06.343 | 1 circuit set |
| 98.06.346 | 1 circuit set + breathing bag |
| 98.06.347 | 1 circuit set + breathing filter |
| 98.06.348 | 1 circuit set + breathing bag + breathing filter |
| 98.06.349 | 1 circuit set + breathing bag + anesthesia mask + breathing filter |
Configuration Key

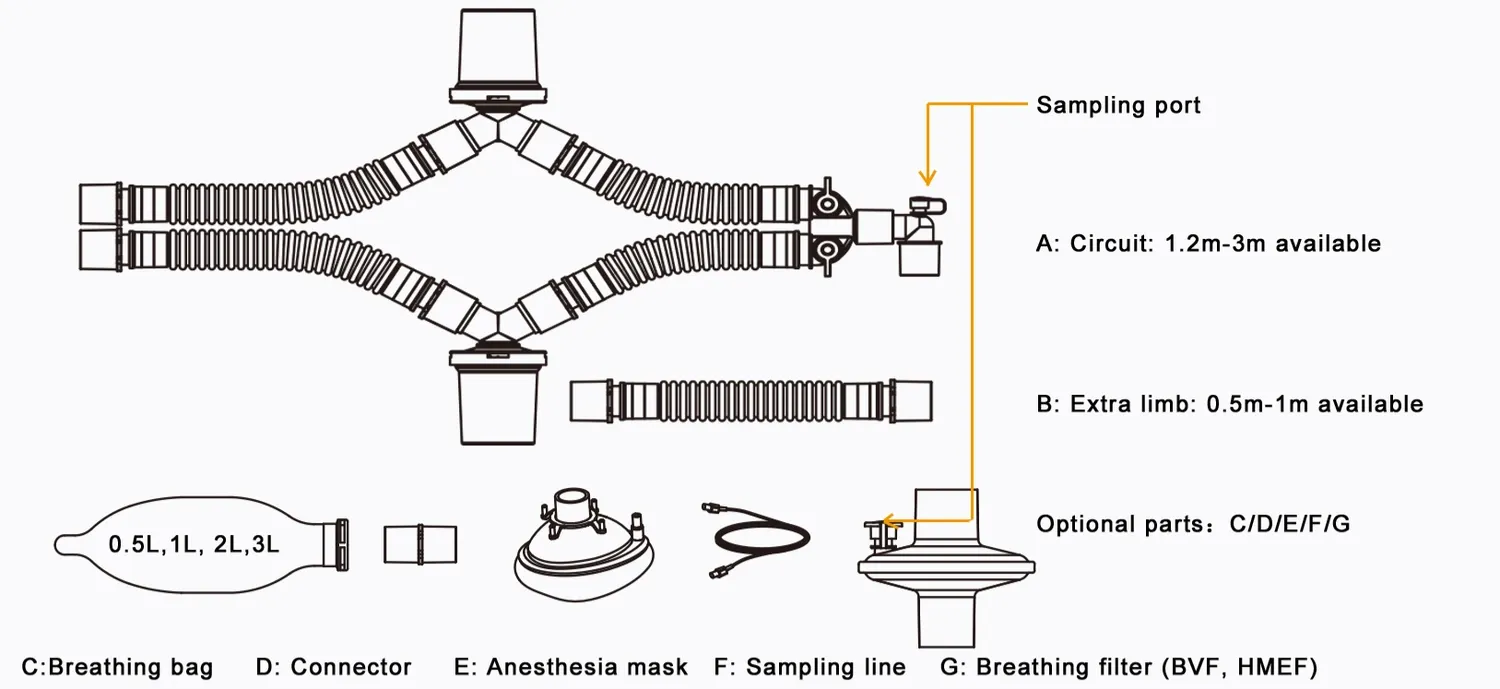

A: circuit set; B: extra limb; C: breathing bag; D: connector; E: anesthesia mask; F: sampling line; G: breathing filter (BVF/HMEF).
Additional Circuit Configurations
This additional reference range is listed separately from the preceding configurations.
Ventilator Circuits - Corrugated
Corrugated ventilator circuits in adult (22 mm ID), pediatric (15 mm ID) and neonatal (10 mm ID) versions, with 18 catalogue configurations.
Features and options
- A: 4 tubes, 2 straight connectors, 1 Y-connector, 1 elbow connector with Luer cap and 2 water traps.
- C: breathing bag (0.5/1/2/3 L); D: connector; E: anesthesia mask; F: CO2 sampling line; G: breathing filter (HMEF).
- B: optional extra limb, 0.5-1 m.
- Breathing bag: latex-free or latex options. Anesthesia mask: PVC, latex-free.
- Sampling ports are shown on the filter and elbow connector.
Additional Circuit Configurations - Catalogue V2024
| REF No. | Size | Tube ID | Table length | Configuration |
|---|---|---|---|---|
| 06.071 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.082 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.381 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.083 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.382 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.109 | Adult | 22 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.053 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.084 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.366 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.085 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.367 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.110 | Pediatric | 15 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
| 06.834 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set |
| 30.086 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C |
| 11.356 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + G |
| 30.087 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + G |
| 11.357 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + E + G |
| 30.111 | Neonate | 10 mm | 0.5-3 m; custom lengths | A: 1 set + C + D + E + F + G |
