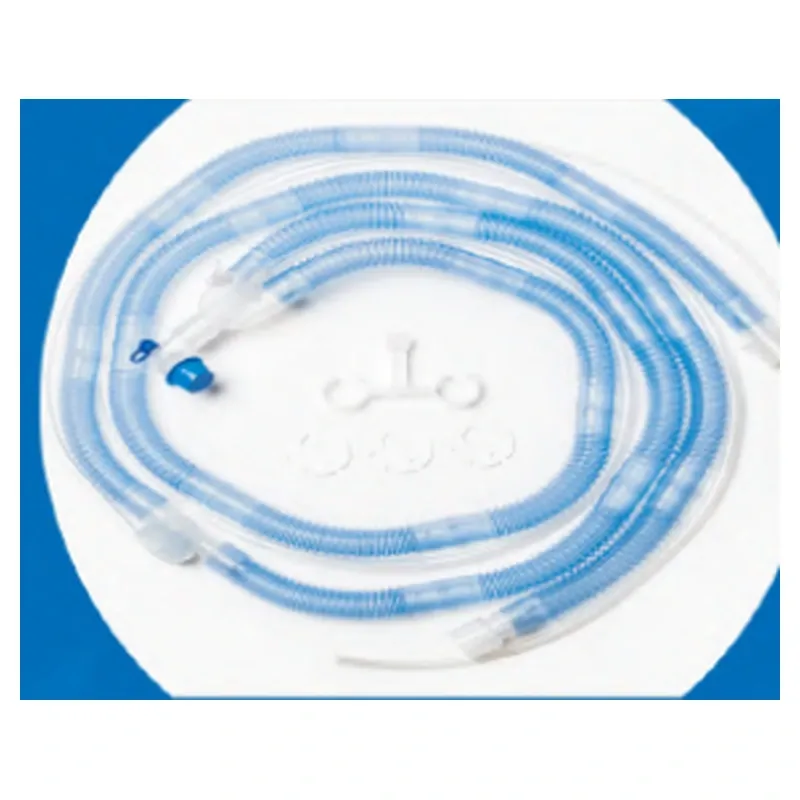

Ventilator Circuits with Exhalation Valve
Adult corrugated ventilator circuit configurations with an exhalation valve and pressure line, including nebulizer-set options.
Ventilator Circuits with Exhalation Valve
Adult corrugated ventilator circuit configurations with an exhalation valve and pressure line, including nebulizer-set options.
Features and options
- 22 mm tube ID; exterior exhalation valve with 1/4 inch ID driving hose.
- Optional water trap and nebulizer set with 6 cc conical chamber.
- Latex-free, as specified in the catalogue.
Model configurations
| REF No. | Type | Table length | Specification |
|---|---|---|---|
| 06.821 | Exhalation valve | 1.2-3 m | 3 corrugated adult tubes + 1 T connector with one-way valve + 1 pressure line + 2 straight connectors + 1 Y-connector + 1 elbow connector with sampling line + 1 elbow connector with Luer cap |
| 06.822 | Exhalation valve | 1.2-3 m | 4 corrugated adult tubes + 1 T connector with one-way valve + 1 pressure line + 2 straight connectors + 1 Y-connector + 1 elbow connector with sampling line + 1 elbow connector with Luer cap + 1 water trap |
| 06.823 | Exhalation valve + nebulizer set | 1.2-3 m | 4 corrugated adult tubes + 1 T connector with one-way valve with single limb 0.9 m + 1 pressure line + 2 straight connectors + 1 Y-connector + 1 elbow connector with sampling line + 1 elbow connector with Luer cap + 2 water traps + 1 nebulizer set with T adaptor loaded spring valve |
| 06.824 | Exhalation valve + nebulizer set | 1.2-3 m | 4 corrugated adult tubes + 1 T connector with one-way valve + 1 pressure line + 2 straight connectors + 1 Y-connector + 1 elbow connector with sampling line + 1 elbow connector with Luer cap + 1 water trap + 1 nebulizer set |
