Ventilator Circuits - NIV Pressure Line
NIV ventilator circuits with a pressure line for adult, pediatric and neonatal sizes. Six configurations feature a 1.6 m circuit and a 1.8 m pressure line.
Ventilator circuits with a pressure line for non-invasive ventilation (NIV). Available in adult, pediatric and neonatal sizes with six reference-number configurations.
Product Features
- Tube type: corrugated; latex-free.
- Tube internal diameter: adult 22 mm, pediatric 15 mm and neonatal 10 mm.
- Standard models below have a 1.6 m circuit and a 1.8 m pressure line.
- General circuit length options: 0.5-3 m, with custom lengths available. Pressure line options: 1.8-2 m.
- Optional components include a water trap, extra limb, heated wire and adaptor, humidifier chamber, other connectors, protecting cap and line clamps.
Configuration Details
Basic Circuit

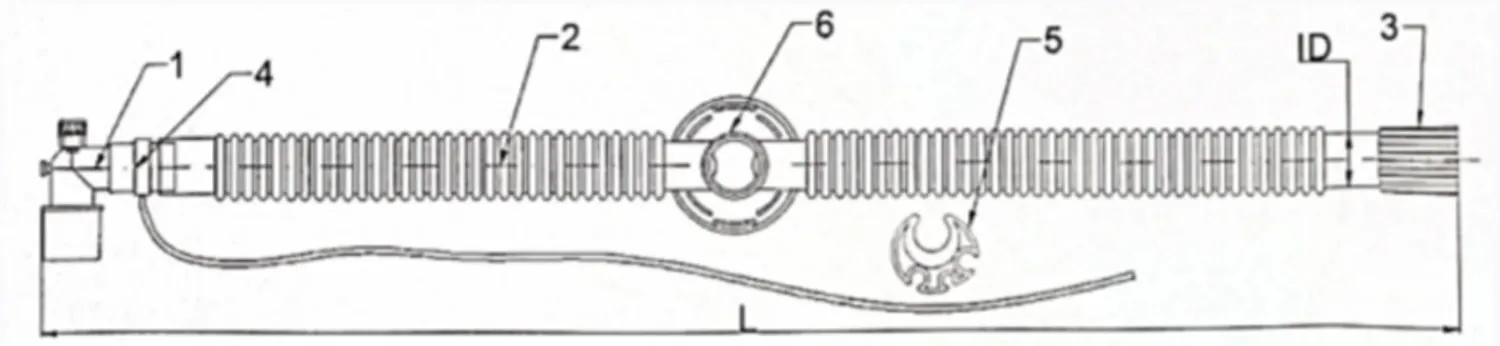

Includes 1 corrugated tube, 1 straight connector and 1 straight connector with a 1.8 m pressure line.
Circuit with Additional Components

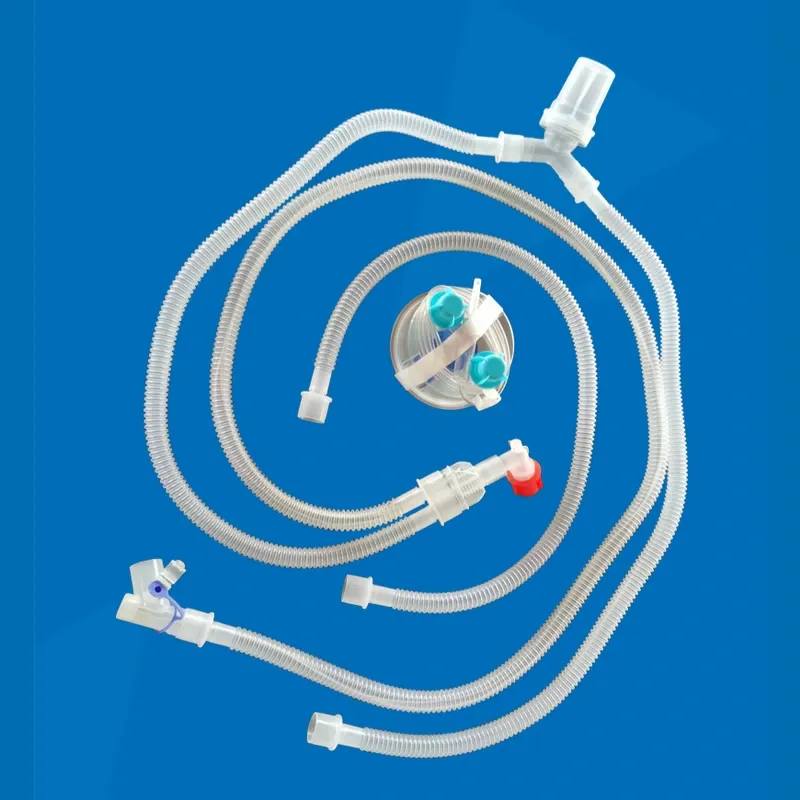

Includes 4 corrugated tubes, 8 straight connectors, 1 water trap, 1 straight connector with a 1.8 m pressure line, a humidifier chamber, Y-connector, elbow connector, heated wire and adaptor, protecting cap and 2 line clamps.
Available Models
All six reference numbers below specify a 1.6 m circuit and a 1.8 m pressure line. Confirm the selected configuration and any custom requirements when ordering.
Adult - tube ID 22 mm
| Reference No. | Configuration |
|---|---|
| 98.06.657 | Basic circuit |
| 98.06.659 | Circuit with additional components |
Pediatric - tube ID 15 mm
| Reference No. | Configuration |
|---|---|
| 98.06.757 | Basic circuit |
| 98.06.759 | Circuit with additional components |
Neonatal - tube ID 10 mm
| Reference No. | Configuration |
|---|---|
| 98.06.857 | Basic circuit |
| 98.06.859 | Circuit with additional components |
